Kaolin is a non-metallic mineral belonging to the clay and clay rock family, primarily composed of kaolinite group clay minerals. Named after Gaoling Village in Jingdezhen, Jiangxi Province, China, pure kaolin appears white, delicate, and soft in texture, possessing excellent physical and chemical properties including plasticity and fire resistance. Its mineral composition mainly consists of kaolinite, halloysite, hydromica, illite, montmorillonite, quartz, and feldspar. Kaolin is widely used in papermaking, ceramics, and refractory materials, followed by coatings, rubber fillers, enamel glazes, and white cement raw materials. Smaller quantities are utilized in plastics, paints, pigments, grinding wheels, pencils, cosmetics, soaps, pesticides, pharmaceuticals, textiles, petroleum, chemicals, building materials, and defense industries.
কাওলিনের মৌলিক ওভারভিউ
ভৌত ও রাসায়নিক বৈশিষ্ট্য
Kaolin typically appears dull or matte, with a pure and fine texture. When impurities are present, it may exhibit gray, yellow, or brown coloration. Depending on the origin, it can occur as loose soil blocks or dense rock masses. Key physical properties include:
- ঘনত্ব: 2.54–2.60 g/cm³
- Melting point: Approximately 1,785°C
- Plasticity: Wet kaolin can be molded into various shapes without cracking and maintains its form over extended periods
The chemical composition of kaolinite is 2SiO₂·Al₂O₃·2H₂O, with theoretical values of 46.54% SiO₂, 39.5% Al₂O₃, and 13.96% H₂O. Kaolin minerals belong to the 1:1 type of phyllosilicates, with crystals composed of silica-oxygen tetrahedral layers and alumina-oxygen octahedral layers.
Genetic Types of Kaolin Deposits
Based on genesis, mineralization geology, geographical conditions, deposit scale, ore body morphology, and material composition, China’s “Geological Exploration Specification for Kaolin Deposits” classifies kaolin deposits into three types and six subtypes:
- Weathering type: Further divided into weathering residual subtype and weathering leaching subtype
- Hydrothermal alteration type: Includes hydrothermal alteration subtypes and modern hydrothermal alteration subtypes
- Sedimentary type: Divided into sedimentary and sedimentary weathering subtypes, as well as kaolinite clay rock subtypes in coal-bearing strata
Industrial Types of Kaolin Ore
Based on texture, plasticity, and sand content, kaolin is classified into three industrial types:
| টাইপ | বৈশিষ্ট্য | Sand Content |
|---|---|---|
| Hard kaolin | Hard texture, no natural plasticity; develops plasticity after crushing and fine grinding | - |
| Soft kaolin | Soft texture, strong plasticity | <50% |
| Sandy kaolin | Soft texture, weak plasticity | >50% |
Hard kaolin has a Mohs hardness of 3–4 and only gains plasticity after crushing and fine grinding.
Global Kaolin Resources
The world’s kaolin resources are abundant and widely distributed. Current identified global kaolin resources are approximately 20.9 billion tons. Countries with high-quality kaolin resources include the United States, the United Kingdom, Brazil, India, Bulgaria, Australia, Russia, and China.
Major Kaolin Deposits Worldwide
United States – Georgia-South Carolina Kaolin Belt
The Georgia-South Carolina kaolin belt is the largest kaolin deposit and production area in the United States. This deposit is a secondary sedimentary formation, and its kaolin is characterized by excellent homogeneity, as particles are naturally graded by size during sedimentation. Georgia alone contributes over 70% of U.S. domestic kaolin output. According to the U.S. Geological Survey, more than 8 million metric tons of kaolin are mined from Georgia annually, with an estimated value exceeding $1 billion. The Andersonville district alone has approximately 290 million tonnes of kaolin reserves suitable for refractory and chemical use.
United Kingdom – Cornwall Region
The kaolin deposits in Cornwall, UK, are hydrothermally altered primary deposits characterized by low iron content and excellent whiteness. These unique geological conditions have made British kaolin world-renowned. Kaolin has been mined in Cornwall for nearly 300 years. In 2023, the UK’s sold production of uncalcined kaolin reached approximately 124,950,000 kilograms. Cornwall’s china clay reserves exceed 60 million tonnes.
China
China ranks among the world’s top kaolin resource holders. The country produces over 3.5 million tons of kaolin annually, with key extraction hubs in Fujian, Guangxi, and Jiangxi provinces. Jiangxi and Fujian are world-renowned for high-quality kaolin that supplies both ceramics and paper-coating industries. China maintains a robust export profile, shipping over 850,000 tons of kaolin in 2023 primarily to Vietnam, Indonesia, Thailand, and South Korea.
Other Major Producers
Brazil possesses approximately 7,360 million tons of kaolin reserves, accounting for over 23% of global reserves. The U.S. holds the largest share at approximately 26%, with 8,200 million tons.
Whiteness and Brightness
Whiteness is one of the primary parameters for evaluating kaolin’s technological performance. High-purity kaolin appears white. Kaolin whiteness is divided into natural whiteness এবং calcined whiteness. For ceramic raw materials, calcined whiteness is particularly important—higher calcined whiteness indicates better quality.
The ceramic industry standard specifies:
- Natural whiteness: Measured after drying at 105°C
- Calcined whiteness: Measured after calcination at 1,300°C
Whiteness is measured using a whiteness meter, which measures light reflectance at wavelengths of 3,800–7,000 Å (1 Å = 0.1 nm). The reflectance of the test sample is compared against a standard reference (such as BaSO₄ or MgO). Brightness is a similar property, equivalent to whiteness measured under 4,570 Å wavelength light. Common commercial kaolin brightness values range from the low 80s to, in some cases, as high as ISO 95. Standards such as ISO 2470 and GB/T 5950 are commonly used for whiteness and brightness measurement.
The color of kaolin is primarily influenced by metal oxides or organic matter content:
- Fe₂O₃ → rose red or brown-yellow
- Fe²⁺ → light blue or light green
- MnO₂ → light brown
- Organic matter → light yellow, gray, blue, or black
These impurities reduce natural whiteness. Iron and titanium minerals can also affect calcined whiteness, causing color spots or melting scars on porcelain.
কণার আকার বিতরণ
Particle size distribution (PSD) refers to the proportion of particles within specific size ranges (expressed in mesh size, millimeters, or micrometers). The PSD characteristics of kaolin significantly impact its plasticity, mud viscosity, ion exchange capacity, molding performance, drying behavior, and sintering properties.
Different industrial applications require specific particle size specifications:
| আবেদন | Particle Size Requirement |
|---|---|
| Paper coating | ≥90–95% < 2 μm |
| Paper filler | ≥78–80% < 2 μm |
| General ultra-fine grades | ≥99% < 2 μm, brightness >90% |
The ability to process kaolin to the required fineness has become a key criterion for evaluating ore quality.
Kaolin Grinding and Processing Methods
Current kaolin processing methods fall into two main categories: mechanical crushing এবং এয়ার জেট মিলিং.
Mechanical crushing typically achieves particle sizes around 300–1,000 mesh. However, because the crushing process involves mechanical contact with grinding media, iron content and other impurities may increase in the final fine powder—a significant drawback for industries with high purity requirements.
Air jet milling (fluid energy milling) operates on a different principle: particles collide and shear against each other without the involvement of grinding media. This effectively preserves material purity, making it ideal for high-purity applications. Additionally, air jet mills can achieve grinding fineness up to 5,000 mesh, with fineness adjustable from 1,000 to 5,000 mesh.
Epic Powder Equipment for Kaolin Grinding
For ultra-fine kaolin grinding applications, এপিক পাউডার provides professional powder processing equipment and complete production line solutions. With over 20 years of experience in the ultra-fine powder industry, Epic Powder specializes in crushing, grinding, classification, and modification processes for ultra-fine powders.
জেট মিল
দ জেট মিল is an ideal choice for kaolin processing, particularly for applications demanding high purity and fine particle size. Key advantages include:
- Media-free, low-temperature grinding—suitable for heat-sensitive or low-melting-point materials
- Narrow particle size distribution with precise control and adjustment
- Sealed system operation with zero dust emissions
- Noise levels below 80 decibels for excellent environmental performance
For kaolin grinding, the jet mill delivers contamination-free, precise particle size control, effectively preserving material purity.
বল মিল ক্লাসিফায়ার সিস্টেম
This system is widely used for grinding and classifying kaolin, calcium carbonate, calcined alumina, quartz, and other minerals. Features include:
- Continuous feed control for stable operation and maximum grinding efficiency
- Multi-wheel classifiers producing fine powder from D97 5μm to 40μm
- Capacity range from 1 ton/hour to 100 tons/hour
- Negative-pressure conveying with zero dust emission
- Optimized grinding media ratios for enhanced efficiency

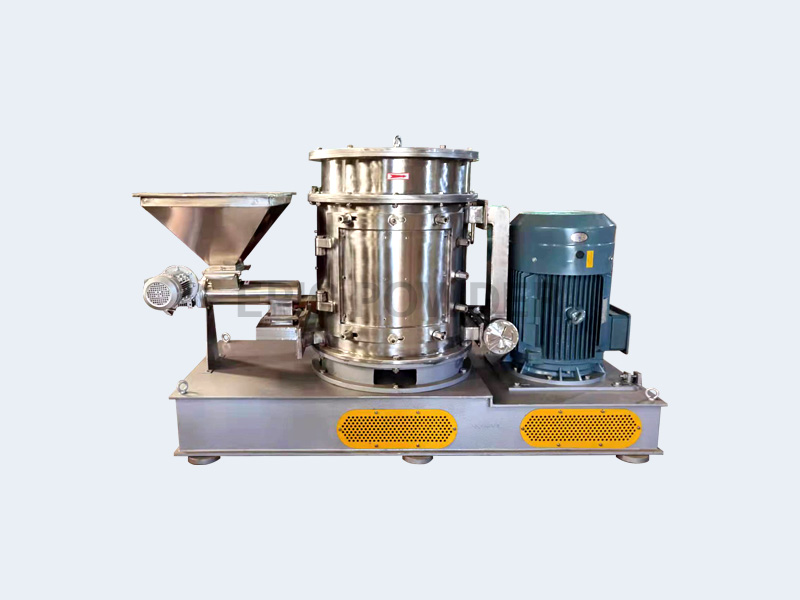

মাল্টি-রোটর মিল
This mill employs rotor-based grinding with multi-layer grinding blades, delivering strong shear and dispersion forces—particularly effective for deagglomeration and ultra-fine grinding of agglomerated materials like kaolin. Key features:
- Adjustable rotor speed up to 160 m/s
- Built-in classification design for better particle size control
- Designed by German and UK technical experts
- Combines grinding, drying, dispersion, deagglomeration, and modification functions
এয়ার ক্লাসিফায়ার
Using centrifugal force from rotating impellers and airflow resistance for particle classification, the air classifier offers:
- High classification accuracy
- Energy efficiency and low production costs
- Wide application in quartz, feldspar, mica, kaolin, and magnesium oxide purification
- TS series suitable for D97 particle sizes between 2 and 45 microns
- Optimized airflow dynamics and low-resistance design for high product fineness and recovery rates
Complete Solutions
Epic Powder provides a full range of dry grinding systems—from laboratory equipment to full-scale production plants—covering grinding, classification, powder shaping, fusion, and deagglomeration technologies. The company offers turnkey industrial solutions and has served customers in over 160 countries and regions worldwide.
সারাংশ
Kaolin is a versatile industrial mineral with applications spanning ceramics, papermaking, refractories, coatings, rubber, plastics, and many other sectors. Its value is determined by key properties including whiteness, brightness, particle size distribution, plasticity, and purity. The growing demand for high-purity, ultra-fine kaolin across industries has made advanced grinding and classification technologies essential.
Whether processing hard kaolin that requires grinding to develop plasticity, or producing ultra-fine grades for paper coating applications, selecting the right grinding equipment is critical to achieving optimal product quality. Air jet milling offers the purity advantage essential for high-end applications, while ball mill classifier systems provide high-capacity solutions for large-scale production. With over two decades of industry expertise, Epic Powder delivers reliable, efficient, and environmentally responsible equipment solutions for the complete kaolin grinding process.
এপিক পাউডার
এপিক পাউডার, 20+ years of experience in the ultrafine powder industry. Actively promote the future development of ultra-fine powder, focusing on crushing, grinding, classifying and modification process of ultra-fine powder. Contact us for a free consultation and customized solutions! Our expert team is dedicated to providing high-quality products and services to maximize the value of your powder processing.
“Thanks for reading. I hope my article helps. Please leave a comment down below. You may also contact EPIC Powder online customer representative জেল্ডা for any further inquiries.”
- জেসন ওয়াং - প্রধান নির্বাহী কর্মকর্তা, প্রকৌশলী
